A/C (Cooling Mode)

A/C (Cooling) Operation Instructions

1. Power On

• Press the operation stop button to turn on the air conditioner. This will start the operation of the air conditioner.

2. Select Operating Mode (Korean : 운전선택)

• Press the mode selection button to choose your desired operating mode(운전선택).
• The currently selected mode will be displayed each time you change it.
• For example, you can select cooling(냉방) mode, dehumidification(제습) mode, or fan(송풍) mode.

3. Set Temperature

• Use the temperature(온도) buttons to adjust the indoor temperature.
• Press the up arrow to increase the temperature or the down arrow to decrease it.
• The set temperature will be displayed when changed.

4. Adjust Wind Speed

• Press the wind strength button to adjust the intensity of the airflow.
• Each press changes the wind strength between "High," "Medium," and "Low."
• The current wind strength will be displayed on the screen.

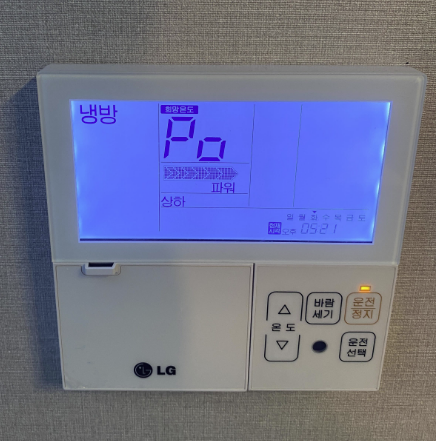

5. Power Mode (P Mode)

• P Mode (Power Mode) is a feature designed to quickly lower the indoor temperature.
• It automatically uses maximum output for rapid cooling.
• When this mode is active, 'Pa' will be displayed.

6. Stop Operation

• To turn off the air conditioner, press the operation stop button.(운전/정지)
• This will stop all functions of the air conditioner and turn off the display.

7. Timer Setting (Time Function)

• You can set the timer function so that the air conditioner automatically turns on or off.
• Use the timer button to set your desired time for the air conditioner to operate.

8. Screen Lock

• To lock the screen, press and hold the lock button. This will disable all operations.
• To unlock, press and hold the lock button again.

Heating Mode (난방)

Heating Operation Instructions

1. Power ON / OFF

• Power ON: Press the power button to turn on the boiler; the display will activate, and the boiler will start operating.
• Power OFF: Press the power button again to turn it off; the display will also turn off, and all operations will stop.

2. Set Heating Mode

• The wall pad controls heating for all rooms simultaneously.
• Press the power button on the wall pad in the living room, then select '실내' using the function(기능) button.

3. Adjust Set Temperature

• Use the up and down arrow buttons to adjust the temperature setting.
• First, press the function button, then press the temperature adjustment button to set your desired temperature.
• The set temperature will be displayed, and the boiler will operate to maintain this temperature.

4. Set Reservation for Operation(예약가동)

• If you want the boiler to automatically turn on at a specific time, use the reservation operation button(예약가동).
• Press the reservation operation button and set the desired time. For example, you can schedule the boiler to turn on automatically in the morning.
• Once set, the boiler will operate at the scheduled time.

5. Set Reservation for Stop(예약정지)

• If you want the boiler to automatically turn off at a specific time, use the reservation stop button(예약정지).
• Press the reservation stop button and set the time for the boiler to turn off.
• For example, you can set it to turn off automatically at night.

6. Stop Heating

• To stop heating, press the function button to deactivate the heating mode. This will stop the heating function of the boiler.
• Alternatively, you can use the reservation stop function to have the heating turn off automatically at a specific time.

7. Additional Functions

• Additional functions such as eco mode or hot water mode can be activated through the function button(기능).
• Customers can enable these functions as needed to enhance the efficiency of the boiler.

Hot Water

- After turning on the boiler, press the function button until you select the 'Bath'(목욕) function to use it.

 [Daesung Celtic(대성쎌틱)]
Instructions for Heating and Hot Water Usage

Both Heating and Hot Water Activated -> Indoor Temperature Control	Hot Water Only Activated -> While Away

Touchpad Usage Instructions

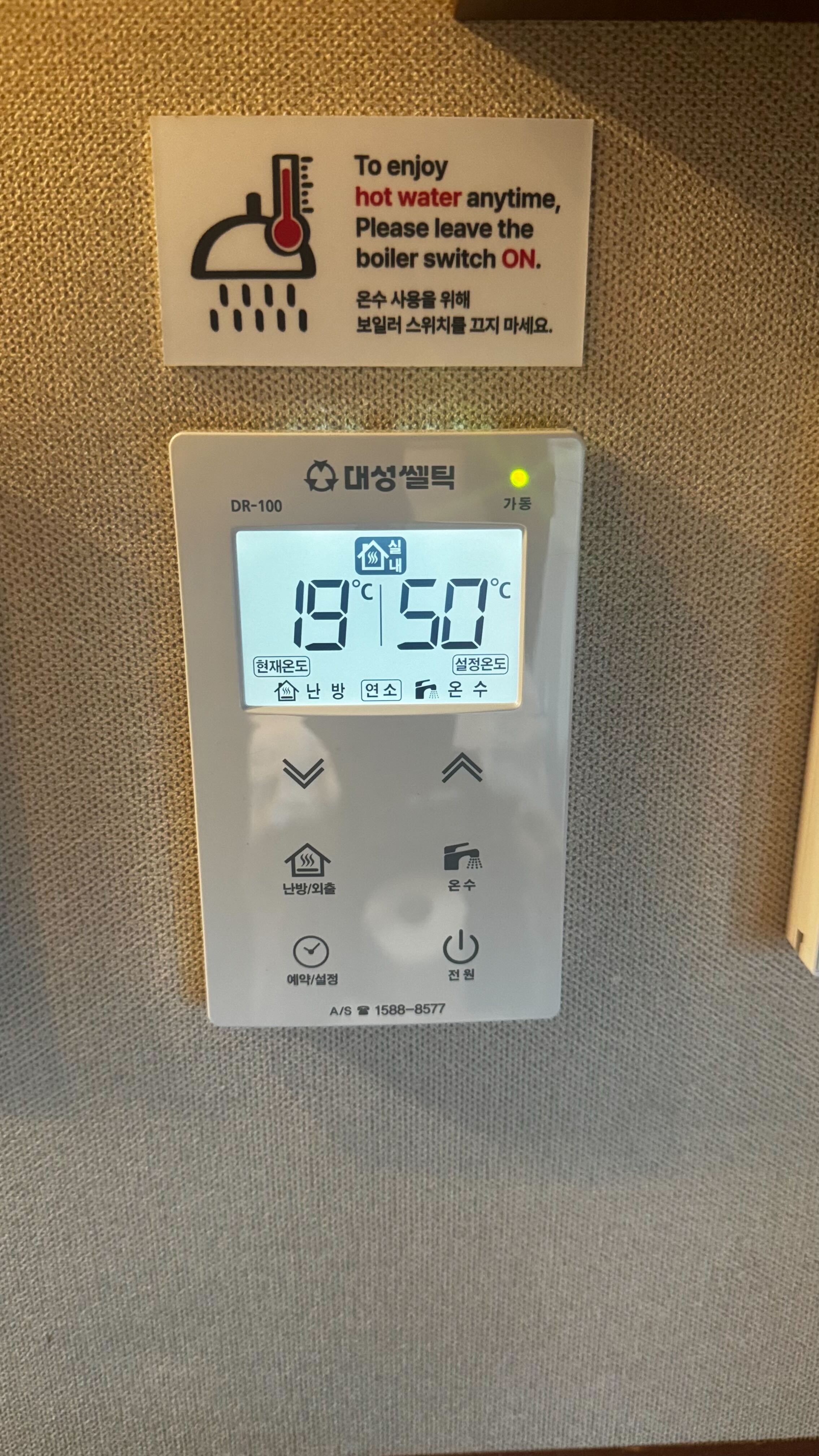

1. Power ON / OFF

   • Power ON: Touch the power button to turn the boiler on. This will activate the thermostat and start the boiler.
   • Power OFF: Touch the power button again to turn it off. The thermostat will also shut down, and all operations will stop.

2. Heating Mode (Ondol/Indoor)

   • When in indoor mode, both heating and hot water will be activated.
   • Press the Heating/Away button to select the heating mode (Ondol/Indoor).
   • Use the control button to set your desired temperature.
   • When the power is OFF, press and hold both the Reservation/Settings button and the Hot Water button for 5 seconds to switch between Ondol and Indoor modes.

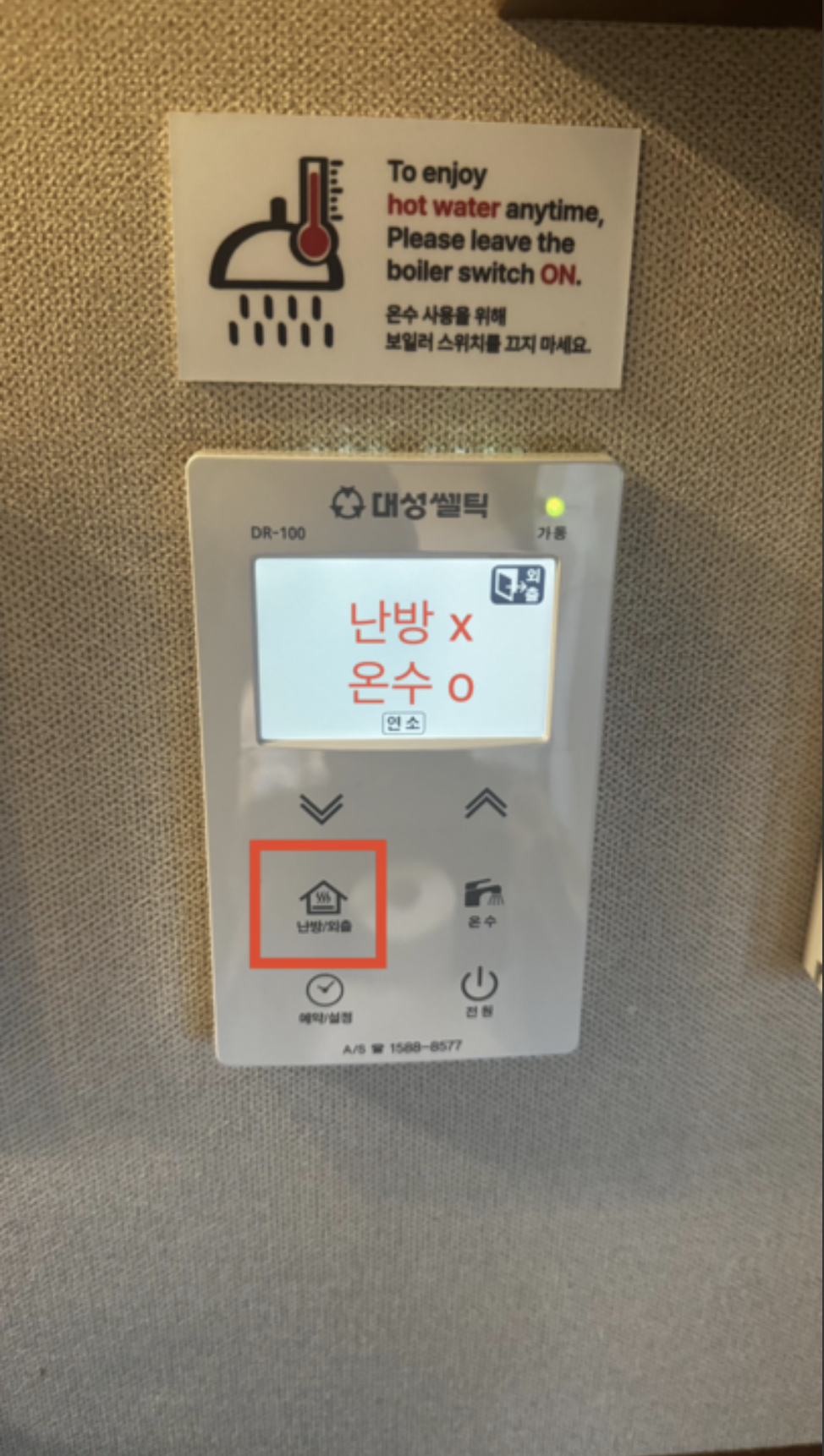

   • If you wish to switch to Away mode, press the Heating/Away button once. It will change as shown in the second image.

3. Hot Water Mode (Away/Hot Water)

   • When in Away mode, only hot water is activated, and heating is turned off. This is the usual mode in operation.
   • If you want to switch from Away to Heating, press the Heating/Away button twice while in Away mode (second image).

4. Reservation Settings

   • To set the boiler's operating time, press the Reservation/Settings button and adjust the time using the arrows.
   • The available time range is 1 to 12 hours, with the operating duration adjustable between 5 and 60 minutes. (The heating temperature is fixed at 80°C.)
   • For example, if you set the boiler to run for 20 minutes every 2 hours, the boiler will operate for 20 minutes and then stop for 2 hours, repeating this cycle.
